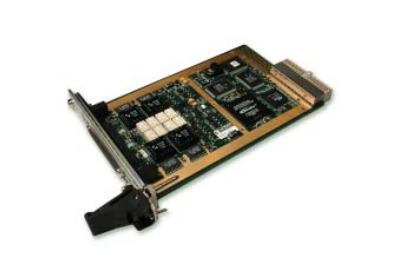

GE Condor QCP-1553板卡功能：
- 1, 2 or 4 Independent MIL-STD-1553 Dual Redundant Channels
- Multi-function Features
- Simultaneous Bus Controller,
31 Remote Terminals and Bus
Monitor
- Single-function Features
- Bus Controller or 31 Remote
Terminals or Bus Monitor
- Bus Controller - BC
- BC->RT, RT->BC, RT->RT
- Mode Codes, Broadcast and
single-shot messaging
- Programmable time delays
- Major/Minor frames
- Real-time conditional
branching
- Two aperiodic messaging
methods
- Remote Terminal - RT
- RT data wrapping
- Multiple RT buffers
- Dynamic Bus Control
- Automatic Mode Code and
Status Bit responses
- Programmable response time
- RT Map Monitoring
- Bus Monitor - BM
- Full error detection
- Multiple monitoring methods
- 45-bit time-tagging
- Adv. interrupts and triggers
- Architecture
BC & RT error injection/
detection
- DYNAMIC architecture
- BC & RT link list structures
- 1 Mbyte RAM per channel
- Direct & transformer coupling
- Environmental options
- Software Support
- Advanced, high-level API
- Source code included
- BusTools Analyzer optional
|
|
| |
豪恩开发的1553卡完全兼容GE产品，可以无缝替换GE的产品 |
|
|
|
|
|
